High-Voltage Utility Grade Equipment

Transforming Energy Infrastrucure for Efficiency and Resilience with.....

New & Reconditioned Transformers, Circuit Breakers & Switchgear

TRANSFORMERS, CIRCUIT BREAKERS & SWITCHGEAR

TRANSFORMERS0 Products
CIRCUIT BREAKERS0 Products
SWITCHGEAR0 Products
Substation Circuit Breakers0 Products

INVENTORY

Quick View
Unused Surplus

UNUSED WAUKESHA 12/16/20 MVA 3-PHASE SUBSTATION TRANSFORMER

• Frequency: 60 Hz • Cooling Class: ONAN/ONAF/ONAF • Impedance: 9.59% • Temperature Rise: 65°C • Windings: Copper Additional Features: • Liquid Level Gauge • Electronic Temperature Monitor • Pressure Release Device • Pressure Vacuum Bleeder • Pressure Gauge • Sudden Pressure Relay High Voltage (HV): 138,000 Delta BIL: 450 kV Low Voltage (LV): 13,200 GRDY/7,620 BIL: 110 kV Taps: 144,900-141,450-138,000-134,550-131,100

WAUKESHA
STT-06-0026
Quick View
Just Added

ONE (1) 25/33/41/46 MVA FEDERAL PIONEER STEP-UP TRANSFORMER

3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF/ONAF 55/65 DEG. C RISE, 9.43% IMPEDANCE, COPPER WINDINGS HV TOP MOUNTED BUSHINGS, CONSERVATOR, HIGH VOLTAGE: 138000GRDY/79670, BIL: 550 KV LOW VOLTAGE, 13800 DELTA, BIL:110 KV, TAPS:144900-141450-138000-134550-131100 Fully Reconditioned Call for Quote. Serious Inquiries Only Please.

FEDERAL PIONEER
STDT-06-6012
Quick View
Just Added

NEW 15.5KV 2000A OD3MAG™ SUBSTATION CIRCUIT BREAKERS

OD3Mag™ Substation Circuit Breaker, Outdoor, rated for 15kV, 2000A, 25kA, consisting of (1) frame fully assembled and tested. Refer to item bill of material for details. Call or Email CTG for more information and pricing.

JST
SKU: CBK-06-5018
Quick View
Unused Surplus

One (1) 108/144/180MVA 336KV-34.5KV OLTC Power Transformer

Rating (KVA): 108/144/180 MVA Frequency: 60Hz. Windings: Copper Primary Voltage: 335 KV Secondary Voltage: 34.5 KV Vector Group: YNyn0+d1 Phases: 3 65° C Rise ONAN/ONAF1/ONAF2 Oil Preservation Systems: Conservator Manufacturer: Georgia Transformer Corp. Location: Southeast USA Standards: IEEEC57.12.00 (2015) Warranty: 5 Years Available: 1 unit Price: Call For Specifications and Price Documentation folder available for your review (serious inquiries only): 1. Comprehensive Drawings. 2. Nameplate 3. Photos

GEORGIA TRANSFORMER
STT-06-0027
Quick View
New Listing

ONE (1) 1200 AMP 72.5kV SIEMENS SF-6 CIRCUIT BREAKER

TYPE SPS2-72.5-31.5-2 72.5 kV 1.0 kA RATED FACTOR 3 CYCLE INTERRUPT 31.5 kA SHORT CIRCUIT 7.9 kA OUT OF PHASE CURRENT 60HZ 350 kV BIL 65 PSIG FILL PRESSURE 56 PSIG ALARM PRESSURE FA2.20 Mechanism 125VDC CLOSE AND TRIP 120VAC MOTOR Call or Email For Quote

SIEMENS
CBK-06-5017
Quick View
Just Added

ONE (1) FULLY RECONDITIONED 10/12.5 MVA ABB SUBSTATION TRANSFORMER

• 3-Phase Substation Transformer • High Voltage: 67000 D, 350 kV BIL • Low Voltage: 12470 Y 7200, 110 kV BIL • Taps: 70600, 68800, 67000, 65200, 63400 • HV Bushings: (3) Stud (Threaded) • HV Termination: Exposed/Top ANSI 3 • LV Bushings: (3) Stud (Threaded) • LV Termination: Exposed/Top ANSI 1 • LV Neutral Bushings: (1) Stud (Threaded) • LV Neutral Termination: Exposed/Top ANSI 1 • Fluid: Mineral Oil • Frequency: 60 Hz • Temperature Rise: 65°C • Cooling Class: ONAN/ONAF • Conductor: Al / Al

ABB
STT-06-0024
Quick View
Unused Surplus

ONE (1) 60HZ. UNUSED SURPLUS 5000 KVA LIQUID FILLED TRANSFORMER

ONE (1) UNUSED SURPLUS 5000 KVA LIQUID FILLED TRANSFORMER DATA: • MOD/SN: 425000A006W • KVA: 5000 AT 65°C RISE • 3 PHASE, 60 Hz, 65'C RISE CLASS: KNAN • IMP: 5.75 ± 7.50 % • TAPS: ± 2 X 2.5 % NOM. • HV: 4160GrdY/2402, 60 kV BIL, 694 A NOM @5000 KVA LV: 600 DELTA, 45 kV BIL, 4810 A @5000 KVA • WT: 28,900 LBS WINDINGS: ALUMINUM

VIRGINIA TRANSFORMER
STT-06-0023
Quick View
Just Added

ONE (1) 72.5KV 2000AMP 6SF 40KA GE CIRCUIT BREAKER

ONE (1) UNUSED 72.5KV 2000AMP 6SF 40KA 60HZ. GENERAL ELECTRIC CIRCUIT BREAKER

GENERAL ELECTRIC
CBK-06-5015
Quick View
New Listing

ONE (1) 24/32/40 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER

THREE PHASE, 60 HERTZ, CLASS OA/FA/FOA IMPEDANCE 7.01%, 65 C RISE, ALUMINUM WINDINGS TOP-TOP BUSHINGS, WINDING TEMPERATURE GAUGE, CT's 600:5 RATIO DRAIN & SAMPLE VALVE, LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE HV: 138000 DELTA BIL: 650 kV LV: 13800 WYE BIL: 110 kV HV Taps: 144900-141450-138000-134450-13110 Fully Reconditioned with (1) Year Warranty

GENERAL ELECTRIC
STT-06-0022
Quick View
Just Added

ONE (1) 30-56 MVA WAUKESHA SUBSTATION TRANSFORMER

ONE (1) 30/33.6/40/44.8/50/56 MVA WAUKESHA, GENERATOR STEP-UP TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF, 55/65 DEG. C RISE, 9,69% IMPEDANCE, COPPER WINDINGS, 6 X HV 600:5, MRCT'S C800, 6 X LV 1200:5 MRCT'S C800, CONSERVATOR, MFG. 2003 HIGH VOLTAGE: 138000GRDY/79670 BIL: 650 KV LOW VOLTAGE: 34500GRDY/19920 BIL: 200 KV TERTIARY: 12470 VOLTS BIL: 110 KV TAPS: 144900-141450-138000-134550-131100 Full reconditioned with (1) year warranty

WAUKESHA
STT-06-0120
Our Focus, Our Mission
CTG Grid Solutions LLC stands as a premier global leader in pioneering grid solutions, specializing in meeting the escalating demands of data centers, bit mining , solar energy and utility high-voltage infrastructure, propelled by the overal imperative of renewable energy integration.

Leveraging profound expertise in energy management and a spectrum of high-voltage electrical equipment, encompassing new, used, and reconditioned assets, CTG is at the forefront of renewable energy assimilation and grid modernization.

Our comprehensive suite of solutions empowers businesses and communities to effectively manage and optimize their energy resources, aligning with their sustainability objectives while ensuring a steadfast and efficient power supply.

We seamlessly merge state-of-the-art technology, sophisticated analytics, and deep-rooted industry acumen to deliver tailor-made solutions that elevate grid reliability, resilience, and performance.

Our dedicated team of specialists is steadfast in delivering unparalleled service and value, guiding our clients through the intricate landscapes of evolving energy needs and potential shortfalls.

At CTG Grid Solutions LLC, our unwavering commitment revolves around forging a smarter, greener, and more sustainable grid, ushering in a luminous future for generations to come. ble grid for a brighter future.

Services

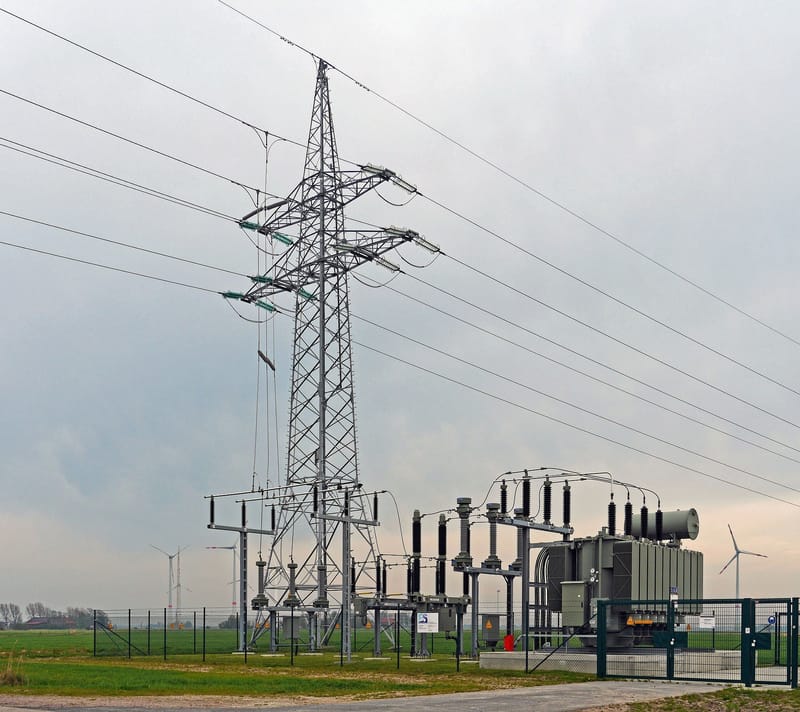

HV EQUIPMENT

HV EQUIPMENT

• Padmount Transformers • Dry Type Transformers Oil-Immersed Power Transformers • Land Based and Mobile Substation Transformers • Pole mount Transformers • Medium and Low Voltage Switchgear • 145kV, 242kV and 362kV Circuit Breakers • Reclosers • Regulators • Relays, PTs, CTs, and more • New, Used and Surplus Parts & Components for all High Voltage Equipment

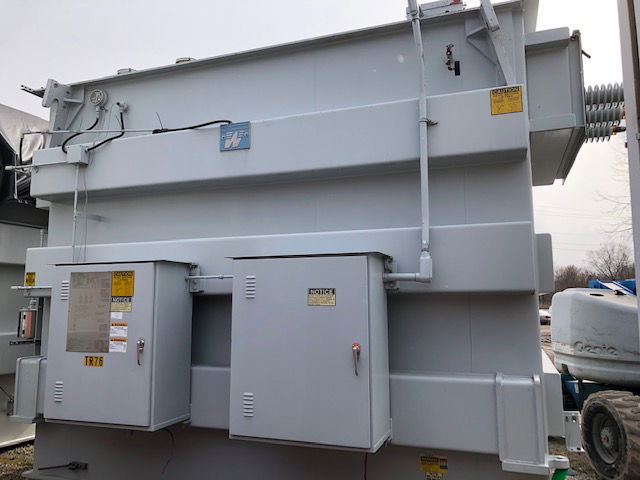

SERVICES INCLUDE:

SERVICES INCLUDE:

• Transformer Rewind & Reconditioned Repairs • Component Regasket and Replacement • Fluid Retrofills • Acceptance Testing & Commissioning • LTC Repair • Switchgear and Circuit Breaker Repair • Switchgear and Circuit Breaker Retrofit and Modernization • Relay Testing and Calibration • LV & MV Starter Troubleshooting and Repair • NERC Compliance Testing • Custom Modifications for Transformers and Switchgear Rental and repair options for all of our product lines.

Contact

  • 401 East Jackson Street, Tampa, FL 33602, USA
  • Suite 2340-F12

Please call, text or email your inquiry and we will respond as soon as possible.
